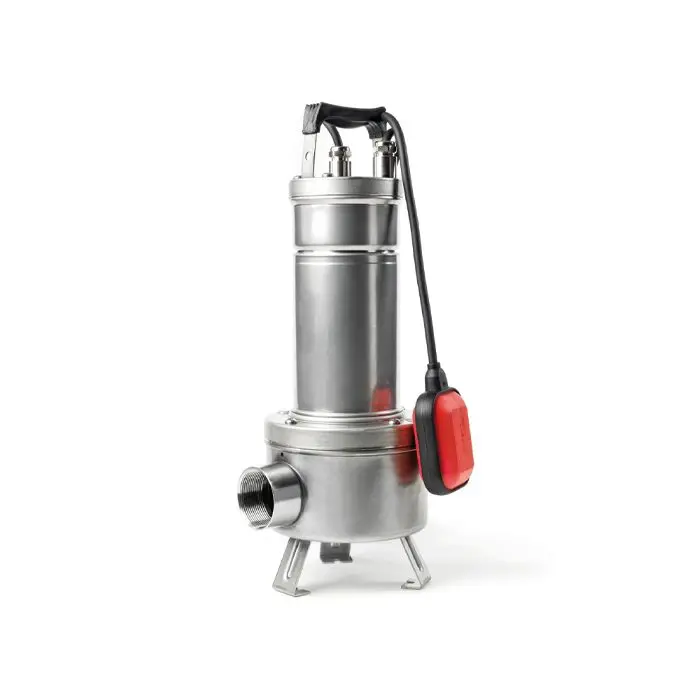

DAB FEKA VS750 T-NA SUBMERSIBLE PUMP 220V 0.75KW

Motor protection class: IP 68.

Insulation class: F.

Standard voltage:
220-240V 50Hz Single-phase
400V 50Hz Three-phase
Continual running with liquid at 35 °C and pump
completely submersible. The single-phase version can
be supplied with float for automatic function.

Power supply cable: 10 mt of H07RN-F cable with
Shuko plug for the single-phase version and 10 meters
of H07RN-F cable for the three-phase version.

Operating range: from 0 to 32 m3
/h with head up
to 14 mt.

Pumped liquid: sewer water and waste water in
general and non aggressive.

Liquid temperature range: from 0°C to +35°C for
household use (EN 60335-2-41), from 0°C to +50°C
for other uses.

Maximum ambient temperature for pump
running with submersible motor: +40°C.
Maximum immersion depth: 10 mt.
Installation: fixed or portable, vertical.
Free Passage: 50 mm
